Sensors - MultiTest-dV


Advanced Force Gauge (AFG)

The AFG range of digital force gauges combines perfectly with the MultiTest-dV to create a flexible, standalone force tester.

To ensure that you have the optimum selection to meet your tension and compression testing needs, ten different models are available to cover the range from 2.5 N right up to 2500 N.

Advanced Force Gauge (AFG) for use with MultiTest-dV

Capacity, range and accuracy

Each gauge reads from zero to its full nominal capacity (listed below).

Measurement accuracy is an outstanding ±0.1% of the gauge capacity, eg AFG 100 has full-scale capacity of 100 N so is accurate to ±0.1 N at any point between 0 - 100 N.

Model AFG
2.5
AFG
5
AFG
10
AFG
25
AFG
50
AFG
100
AFG
250
AFG
500
AFG
1000
AFG
2500
N 2.5 5 10 25 50 100 250 500 1000 2500
lbf 0.55 1.1 2.2 5.5 11 22 55 110 220 550
kgf 0.25 0.5 1 2.5 5 10 25 50 100 250

Enhanced Load Sensors (ELS)

The ELS range of interchangeable tension and compression loadcells is specially adapted to the MultiTest-dV and OmniTest materials testers.

To ensure that you have the optimum selection to meet your tension and compression testing needs, thirteen different models are available to cover the range from 2 N right up to 2500 N.

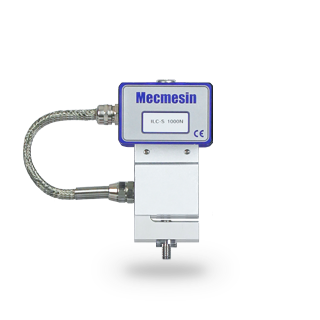

Enhanced Load Sensor loadcell for use with MultiTest-dV

ELS capacity, range and accuracy

Each loadcell reads from zero to its full nominal capacity (listed below).

Measurement accuracy is an outstanding ±0.5% of reading from 5-100% of the loadcell capacity, eg ELS 100 when measuring 10N it is accurate to ±0.05 N or when measuring 50N it is accurate to ±0.25 N.

Model ELS
2
ELS
5
ELS
10
ELS
25
ELS
50
ELS
100
ELS-S
100
ELS-S
200
ELS
250
ELS
500
ELS-S
500
ELS-S
1000
ELS-S
2500
N 2 5 10 25 50 100 100 200 250 500 500 1000 2500
lbf 0.44 1.1 2.2 5.5 11 22 22 44 55 110 110 220 550
kgf 0.2 0.5 1 2.5 5 10 10 20 25 50 50 100 250
